Hydraulic Pressure gauge calibrator Hand Pump Y060 manufacturer from China Xian Yunyi Instrument Co., Ltd.

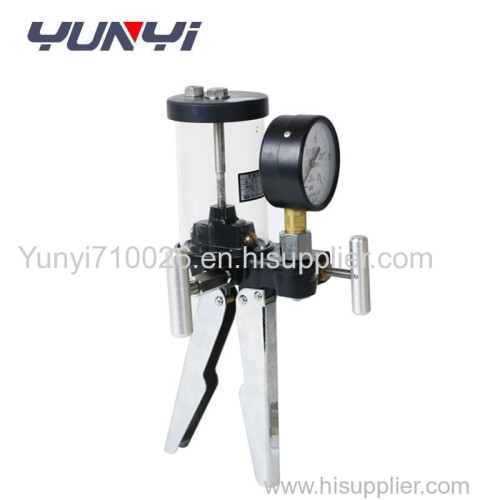

Hydraulic Pressure gauge calibrator Hand Pump

Qty (Piece/Pieces)	Unit Price (220.0~269.0 USD)
1	269
2 - 4	259
5 +	220
Trade Term:	FOB,CIF,EXW
Payment Terms:	T/T,WU,Paypal,Money Gram
Place of Origin:	Shaanxi, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Y060

Production Capacity: 500pcs per week

Delivery Date: 5working days

Pressure Range:: 0-25Mpa Hydraulic

Weight:: ≤ 0.8Kg

Means of Transport: Ocean,Land,Air

Packing: standard export package

Brand Name: Yunyi

Relative humidity:: ≤ 100%

Table connector thread:: M20 * 1.5 thread

Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control

Description Hydraulic Pressure Hand Pump

Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.

Detailed Images Hydraulic Pressure Hand Pump

Specification Hydraulic Pressure Hand Pump

output pressure range	Y039: 0-1.6MPa Y061: -0.1-0MPa Y060: -25MPa YFP-16: -0.088~1.6MPa(-0.88~16bar) YFP-20: -0.088~2.0MPa(-0.88~20bar) YFP-25: -0.088~2.5MPa(-0.88~25bar)
operating temperature	-20~50C
operating relative humidity	~100%
flexible hose connector	M20*1.5 female
master gage connector	1/4NPT male
dimensions	235×120×65 230 x 110 x 60
weight	0.6kg 0.5kg
Accessories	500 mm long plastic hose and a leatherette carrying bag
Outlet threads	1/4 NPT, or to custom request
Vernier-adjuster	micro-adjustable, volume control

Features Hydraulic Pressure Hand Pump

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.

Selection Guide Hydraulic Pressure Hand Pump

YFP-16: -0.088~1.6MPa Stability: 0.05% Type: Pneumatic pressure	YFP-20: -0.088~2.0MPa Stability: 0.05% Type: Pneumatic pressure	YFP-25: -0.088~2.5MPa Stability: 0.05% Type: Pneumatic pressure

YFP-16: -0.088~1.6MPa

Stability: 0.05%

Type: Pneumatic pressure

YFP-20: -0.088~2.0MPa

Stability: 0.05%

Type: Pneumatic pressure

YFP-25: -0.088~2.5MPa

Stability: 0.05%

Type: Pneumatic pressure

Y039: 0~1.6MPa Stability: 0.05% Type: Pneumatic pressure	Y060: 0~25MPa Stability: 0.05% Type: Hydraulic pressure	Y061: -0.08~0MPa Stability: 0.05% Type: Pneumatic pressure

Y039: 0~1.6MPa

Stability: 0.05%

Type: Pneumatic pressure

Y060: 0~25MPa

Stability: 0.05%

Type: Hydraulic pressure

Y061: -0.08~0MPa

Stability: 0.05%

Type: Pneumatic pressure
